A word from Tridos Designs
Our TDC replaces traditional hop-up arms with CNC machined aluminum nubs that provide perfectly vertical pressure to the bucking. Each TDC comes with 3x different nubs so you can choose whichever you like the best or use the red universal nub with any off-the-shelf nub like ML Omega / Panthera / soft nub / etc
Easy Installation
We made sure that our TDC 2.0 can be installed with any level of skill. We made sure that our drill jigs are usable with handheld drills, the process is dead simple and there's no way you can mess it up.
We also have detailed step-by-step installation videos from start to finish.
Pro vs. Basic
PRO version provides the absolute perfection in terms of feedback and looks. The external aluminum housing provides a satisfying click to the thumbscrew that allows to precisely adjust the TDC and protects the screw from accidental bumps. It also acts as an extra safety layer to make sure the screw doesn't turn by itself.
BASIC version provides the same internals and performance of the TDC 2.0 PRO but at a more affordable price point, just without the external aluminum housing (clicking mechanism). In case you ever change your mind, you can purchase the TDC 2.0 Pro Upgrade separately at any time to get the full experience!
Materials
All of the parts in the kit, except for the drill jig, are CNC machined aluminum and Nylon (some pictures can be outdated). Everything is made to fit flawlessly together with no wobble whatsoever. They look and feel exceptional.
Required for installation:
- drill or drill-press
- beer (optional)
Compatibility
TDC 2.0 is compatible with any bucking / r-hop. This version of TDC 2.0 is compatible only with non-bridged barrels.

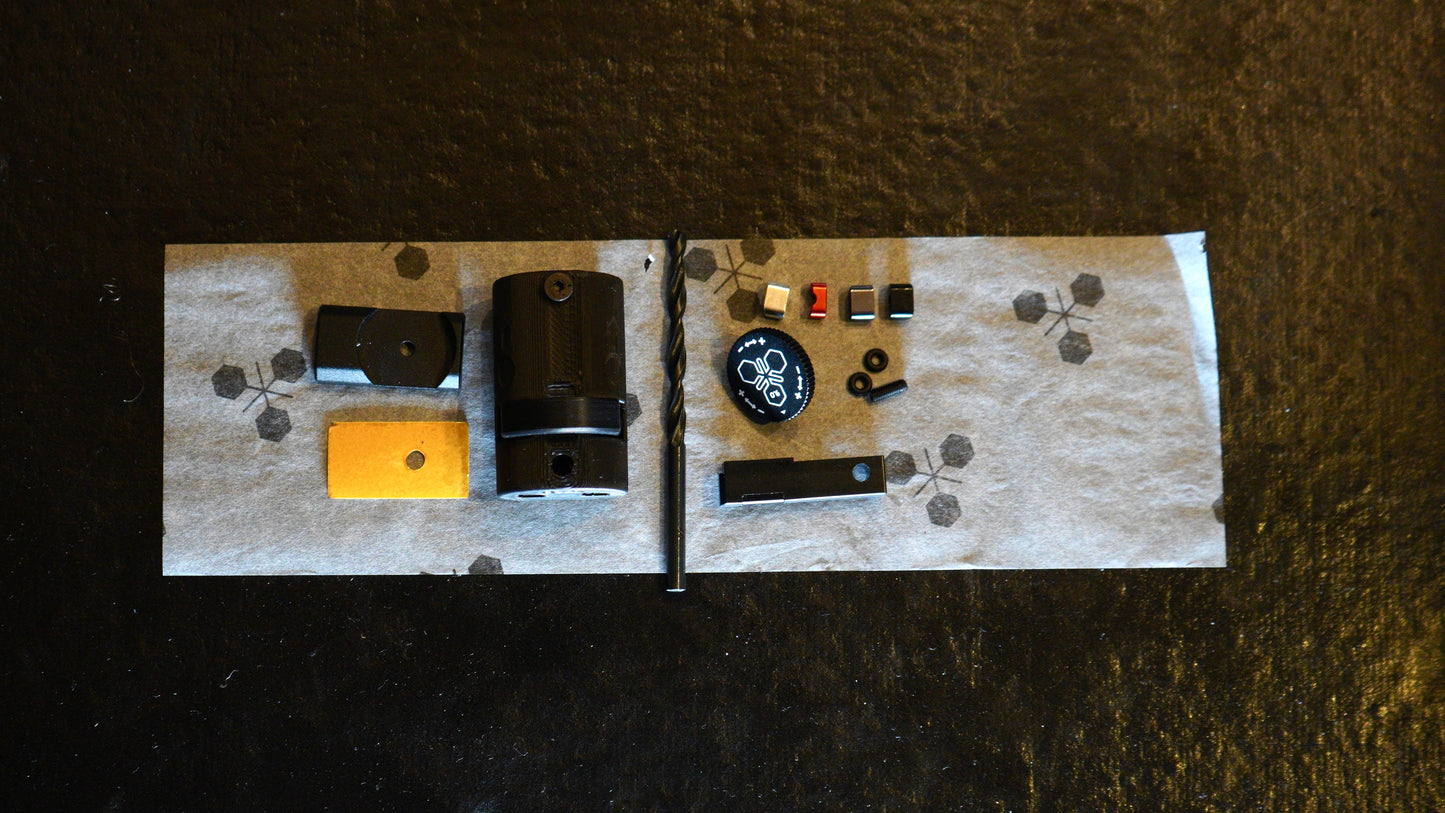

Includes
Included in BASIC & PRO:
- 1x 9.0mm thumbscrew
- 2x o-rings (only for BASIC installation)
- 1x M3 grub-screw
- 1x nylon arm / insert
- 1x custom M3 aluminum nut
- 3x different aluminum nubs (black, gray and silver)
- 1x universal nub (red)
- 1x set of drill jigs
- 3.5mm drill bit
Included only in PRO:
- 1x external housing
- 1x plunger (pre-installed)
- 1x spring (pre-installed)
- 1x M3 set screw (pre-installed)
- 1x spare set of double sided tape

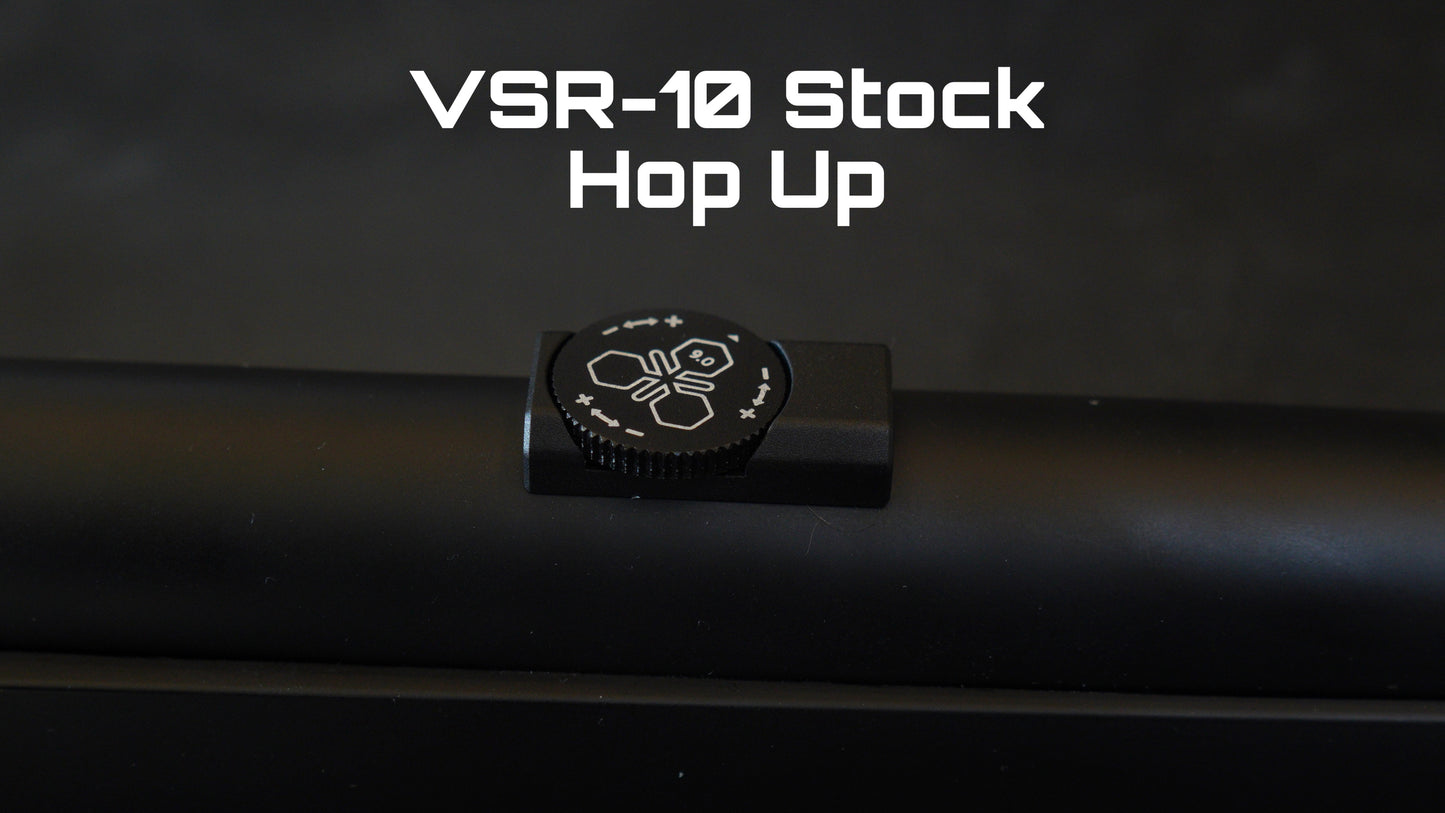

Attention: The guide for the Tokyo Marui VSR-10 version is still a work-in-progress and videos will be updated. Follow the instructions guided but not exact, from the Action Army hop up tdc 2.0 tutorial.

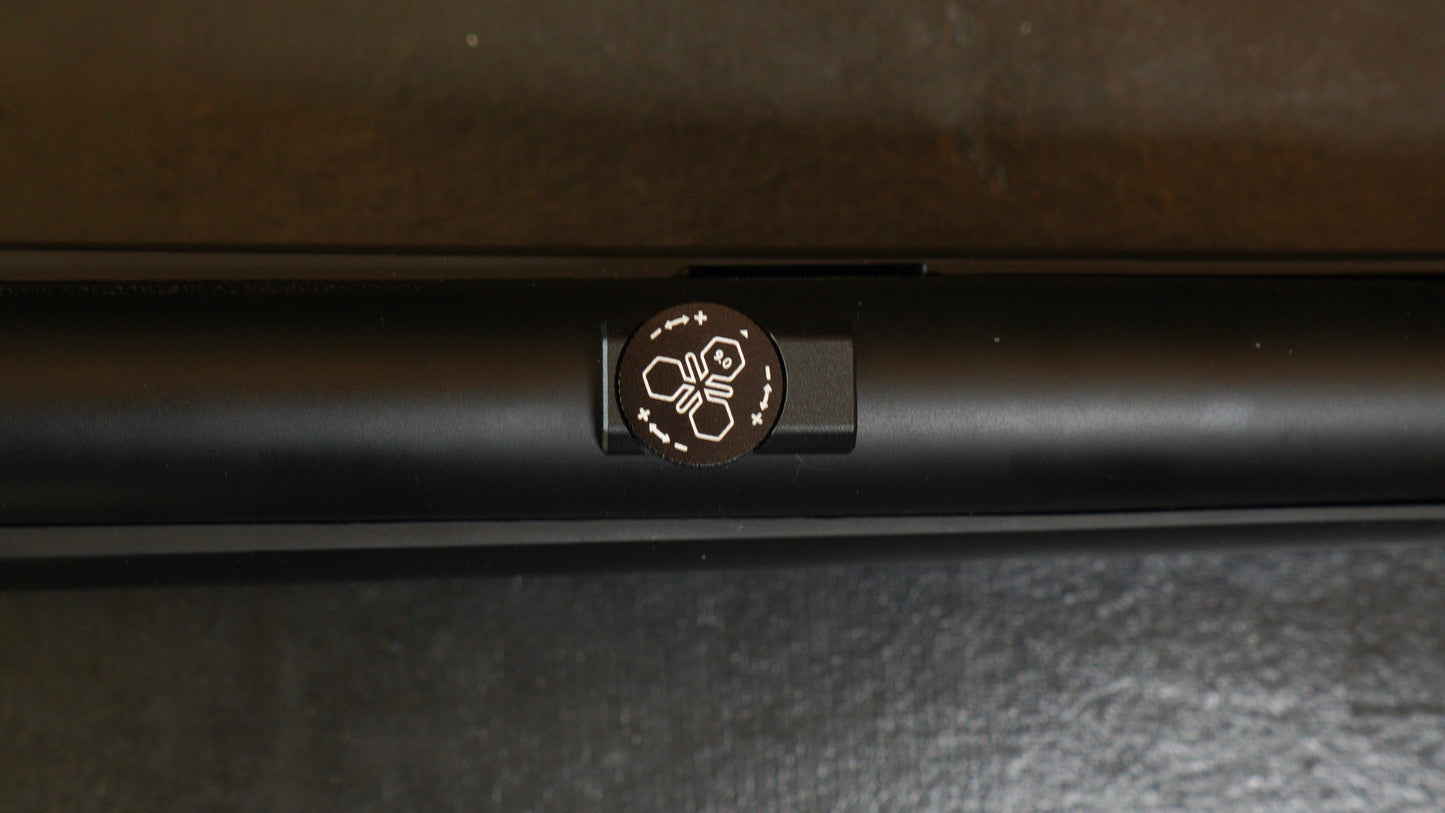

*first picture is an example picture of what the installed TDC will look like
